Key Specifications

• Payload Capacity: 120 – 400 tons
• Applicable Shaft Diameters: 1.0 – 5.0 meters
• Inclination Range: Vertical and up to 25°
• Operation Mode: Remote-controlled, mechanized, and modular

Main Advantages

• Fully mechanized and controlled lining process for maximum accuracy and safety
• Remote-controlled operation minimizes personnel exposure and risk
• Compact hydraulic design optimizes space and energy use
• Adaptable to various pipe diameters and shaft geometries
• High automation and flexible setup for different geology types
• Can be combined with BBR (Boxhole Boring Rig) systems for simultaneous shaft drilling and lining

Product Variants
?? LLS – Jacking Frame Type
Based on Herrenknecht’s proven pipe jacking technology, this configuration uses a hydraulic jacking frame to lower, lift, or press the lining rings during shaft construction.

• Application: Vertical or inclined shafts in fractured or stable geology
• Mechanism: Retractable grab pins hold and move lining rings precisely
• Compatibility: Suitable for both new and retrofitted lining rings with integrated grab pockets
• Benefits: Allows controlled pressing of lining rings under challenging geological conditions

Typical Applications:

• Shaft lining after raise boring or boxhole boring
• Shaft maintenance or lining replacement
• Lining installation in complex geological settings

?? LLS – Strand Jack Type
This configuration employs strand jack technology, similar to Herrenknecht’s Vertical Shaft Sinking Machine (VSM) systems.
It uses multiple strand jack units symmetrically arranged around a circular base frame to handle heavy loads with exceptional precision.

• Load Capacity: Up to 200 tons per strand jack unit
• Setup Flexibility: Adjustable from 0°–90° around the shaft edge
• Configuration: 2–3 strand jack units depending on shaft depth and available space
• Modular Design: Enables fast adaptation to site-specific conditions

Typical Applications:

• Lining installation in vertical shafts with stable geology
• Integration with boxhole backreaming or raise boring systems
• Efficient post-sinking lining installation

Performance & Safety

• Automation Integration: Remote and digital monitoring ensures precision during lifting and lowering operations
• Safety Enhancement: Reduces on-site human exposure and manual intervention
• Versatility: Customizable for varying lining materials, geological profiles, and shaft depths

System Integration
The LLS can be combined with Herrenknecht BBR systems to enable simultaneous drilling and lining, optimizing project timelines and minimizing ground disturbance.

Applications

• Construction of access and ventilation shafts
• Sewer, utility, and metro infrastructure projects
• Mine and tunnel shaft lining operations
• Rehabilitation or replacement of existing shaft linings

Summary
The Herrenknecht Lining Lowering System (LLS) redefines shaft lining efficiency and safety through mechanization, precision control, and adaptability. Whether configured as a Jacking Frame System or Strand Jack System, it ensures fast, controlled, and safe lining installation in vertical and inclined shafts across all geology types.

Types of Screw Conveyors:

• U-Type Screw Conveyors: Ideal for horizontal and slightly inclined installations (10° – 20°).
• Pipe-Type Screw Conveyors: Suitable for both horizontal and steeply inclined operations (0° – 90°).

Drive Systems:

• Direct-drive motor with gear reducer
• Vibration motor designs for specific materials and applications

Key Features & Design Options:

• Custom-engineered solutions based on material type and required capacity
• Intermediate bearing options for large-size systems (Bronze, Tungsten Carbide)
• Wear-resistant linings (HB400–500, TIVAR) for high-abrasion materials
• Material construction options: S235JR, S355JR, and stainless steel grades
• Helical screw configurations: Single, double, or triple winding
• Multiple feeding and discharge point configurations
• Custom speed configurations (Standard up to 600 RPM)

Applications by Industry:

• Cement and concrete production
• Glass and lime industries
• Chemical and gypsum processing
• Grain handling and food processing
• Recycling and bulk powder handling

Experience the difference with B.Tech Professional Grade Blades – where precision meets durability, and efficiency meets excellence. Elevate your cutting experience today.

1. Shock Resistant: Engineered to endure shocks and impacts, our Video Borescope ensures reliability even in demanding environments, providing peace of mind during inspections.


2. Tailored for Plumbing and Garage Use: Specifically crafted for plumbing and garage inspections, our borescope is equipped to navigate tight spaces and provide crystal-clear visuals for comprehensive assessments.


3. Self-Adjusting LED Display: With a self-adjusting LED display, our borescope optimizes visibility in varying lighting conditions, ensuring clear and accurate imagery during inspections.


4. Flexible Movement within Plumbing: Designed for agility, our borescope offers flexible movement within plumbing systems, allowing users to maneuver effortlessly and inspect hard-to-reach areas with ease.

• Borescope Diameter: 12mm, facilitating smooth navigation through narrow spaces and intricate plumbing systems.


• Screen Size: Featuring a 3.5" screen, our borescope provides a spacious display for enhanced visibility and detailed inspection results.

• Wattage: 1200W


• Pressure: 11 Obar


• Energy saver


• Double-sealed for better stream quality


• Self-suction


• Comes with a soap bottle


• Mobile and easy to use


• Compact and lightweight


• Litres per minute: 4.SL/lMIN


• 101BAR

Technical Specifications

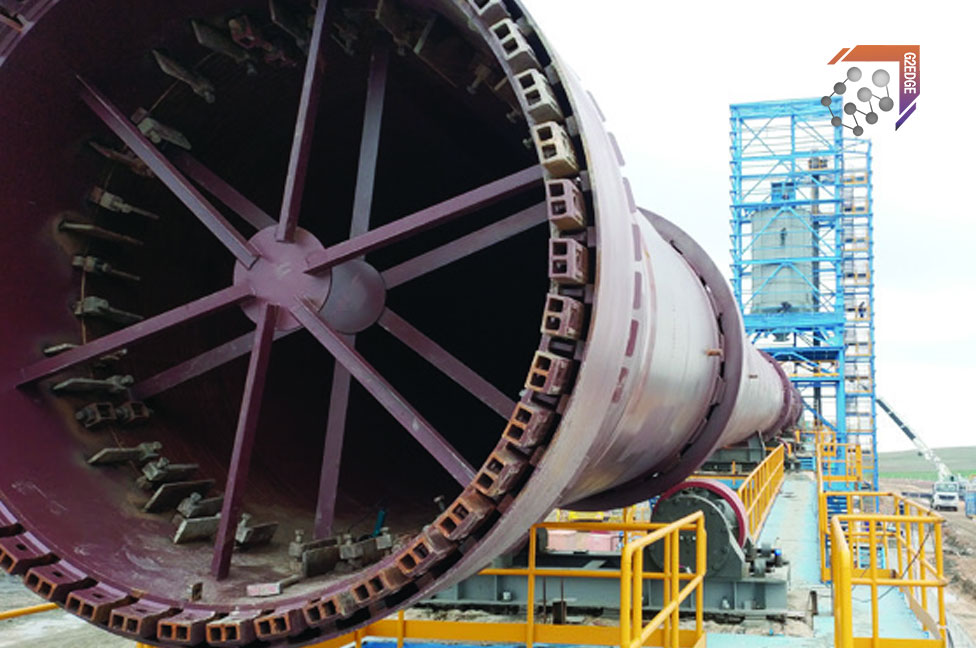

• Cooler Diameter: Ø3000 mm
• Cooler Length: 30,000 mm
• Drive Unit Power: 90 kW
• Rotational Speed: Adjustable from 0 to 2.4 rpm

Key Features

• High thermal exchange efficiency
• Continuous and stable cooling performance
• Customizable size and drive options
• Ideal integration with rotary kiln systems

1.
   Innovative Separation Mechanism: Crafted with precision, the machine comprises a fixed chassis and vibrating body working in tandem. The stone separator, designed to account for the varying densities of stones and grains, employs vibration to guide grains against or with gravity, effectively separating stones. Wheat is then seamlessly sifted from the stones using a vibrating sieve.



2.
   Dust-Free Purification: Going beyond mere separation, the system incorporates air aspiration from the ventilation line, ensuring the absorption and removal of dust. This dual-action process guarantees not only the elimination of foreign materials but also the delivery of a pristine, dust-free end product.


• Food Industry: Ensuring grain purity in diverse food processing applications.


• Flour and Semolina Mills: Elevating the quality of flour and semolina production.


• Cereal Cleaning Plants: Optimizing cleaning processes in facilities dedicated to cereal processing.


• Corn Factories: Maintaining premium grain quality in corn processing operations.


• Oil Factories: Ideal for preserving grain purity in vegetable oil production.


• Malt Factories: Ensuring high standards in malt production processes.


• Cacao and Coffee Plants: Contributing to quality assurance in cocoa and coffee processing plants.

• Used In Oil, And Gas Industry


• Used In Ship Building Industry


• Used In Power, And Telecom Industries


• Used In Mining And Construction


• Used In Chemical Industry.


• Used In Water And Wastewater Industry.


• Used In Pharmaceutical Industry.

Core Advantages:

• Space-saving vertical design
• Wide capacity range for various industries
• Ability to lift materials to significant heights

Feeding Methods:

• Bottom feed: For fine, free-flowing materials with low scooping resistance
• Direct chute feed: For coarse, abrasive, or hard-to-scoop materials

Elevator Variants:

• Belt-type and chain-type bucket elevators
• Single-body or double-body designs
• Bucket options: Deep, shallow, or V-shaped
• Drive group types: Direct-coupled motor/reducer, torque arm
• Optional components: Hydraulic or elastic couplings, reverse locking devices, auxiliary drive units

Technical Specifications:

• Bucket width range: 125 mm – 1,000 mm
• Customizable speed and capacity
• Durable construction using abrasion and corrosion-resistant materials:
  • Steel
  • Stainless steel
  • Hardox
  • Optional protective coatings available

Industry Applications:

• Cement & building materials
• Glass manufacturing
• Mining and crushing plants
• Food & grain processing
• Agriculture
• Chemical and recycling industries
